Universal Logging System

Notifications

The Continuous Values send well defined values of all different value types and derived value types to the ULS-server. Threshold definitions are used to trigger notifications.

Use manual analysis and reports to check the correct firing of notifications.

Variations of Notifications

all different datatypes:
- numeric
  - integers
  - float, float (unit: %), float (unit: [E]) ¹⁾
- string
- images and files
all different threshold definition types (explicit, domain-based, group-based):
- limits
- limits combined over different details (combi-limits)
- isAlive
- limits on aggregated values
notification destinations
- UTT (ULS Ticket Tracking)
- e-Mail

Notification Parameters for Limits

These are the parameters (entries in the definition form) to define threshold limits on values of a detail.

average function
- last, min, max, max-min, last-first, first
- avg (average, arithmetic mean), sum (sum of all values), dev (standard deviation), count, grad (gradient), accel (acceleration), differ (difference)
over
- number of values
- time interval (minutes, hours, days)
comparison
- < <| <= <=| > >| >= >=| = =| != !=| value is compared to limit (type conversion)
- == ==| !== !==| value is compared to limit (no type conversion, always string comparison)
- ~~ ~~| !~~ !~~| value contains limit as substring
- ~ !~ ~| !~| value matches regular expression as limit
notification level
- info
  - if the value drops below (or whatever comparison is defined) info level, the notify mode black-out is cleared
- warn
- error
notify mode
- collect (over 10 minutes, string only), every value, 1h, 12h, 24h
message
- message body with replaced static and dynamically calculated embedded placeholders and functions
  - placeholders: AVERAGEOVER, COMPARE, DETAIL, LIMIT, SECTION, SERVER, TESTSTEP, UNIT, VALUE
  - functions: AVERAGE_OF, COUNT_OF, DIFF_OF, DIFFER_OF, FIRST_OF, GRAD_OF, GRADIENT, LAST_OF, LAST-FIRST_OF, MAX_OF, MAX-MIN_OF, MIN_OF, PREDICTION, REGCOUNT, STD_OF, SUM_OF, VALUE_OF
destination
- UTT, e-mail, IWF in different states
active
- on/off

General Message Body

NOTE: the message bodies may differ in contents for different value types (numeric, string, file)!

This is the general message body for limits on numerical values:

MSG xxx: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered.
Value [$VALUE '$UNIT'], [$TIMESTAMP].
Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT].
Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE].
Previous value: [$PREVVALUE], [$PREVDATE].

average_of....: $AVERAGE_OF(detail/unit, range)
count_of......: $COUNT_OF(detail/unit, range)
dev_of........: $DEV_OF(detail/unit, range)
differ_of.....: $DIFFER_OF(detail/unit, range)
first_of......: $FIRST_OF(detail/unit, range)
grad_of.......: $GRAD_OF(detail/unit, range)
last_of.......: $LAST_OF(detail/unit, range)
last-first_of.: $LAST-FIRST_OF(detail/unit, range)
max_of........: $MAX_OF(detail/unit, range)
max-min_of....: $MAX-MIN_OF(detail/unit, range)
min_of........: $MIN_OF(detail/unit, range)
prediction....: $PREDICTION(detail/unit, time_future [, time_past])
sum_of........: $SUM_OF(detail/unit, range)
value_of......: $VALUE_OF(detail/unit)
unit_of.......: '$UNIT_OF(detail/unit)'

This is the general message body for limits on string values:

MSG xxx: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered.
Value [$VALUE '$UNIT'], [$TIMESTAMP].
Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT].
Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE].
Previous value: [$PREVVALUE], [$PREVDATE].

count_of......: $COUNT_OF(detail/unit, range)
differ_of.....: $DIFFER_OF(detail/unit, range)
first_of......: $FIRST_OF(detail/unit, range)
last_of.......: $LAST_OF(detail/unit, range)
max_of........: $MAX_OF(detail/unit, range)
min_of........: $MIN_OF(detail/unit, range)
regcount......: $REGCOUNT(detail/unit, regexp, range)
value_of......: $VALUE_OF(detail/unit)
unit_of.......: '$UNIT_OF(detail/unit)'

This is the general message body for limits on LOB values:

MSG xxx: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered.
Value [$VALUE '$UNIT'], [$TIMESTAMP].
Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT].
Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE].
Previous value: [$PREVVALUE], [$PREVDATE].

count_of......: $COUNT_OF(detail/unit, range)
dev_of........: $DEV_OF(detail/unit, range)
differ_of.....: $DIFFER_OF(detail/unit, range)
size_of.......: $SIZE_OF(detail/unit)

Use time range (like '10m'), not numeric range (number of values). It works faster by factors.

The unit for images and files is IMAGE or BLOB.

This is the general message body for isAlive messages:

MSG xxx: isAlive notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered.
Timestamp [$TIMESTAMP] of value [$VALUE '$UNIT']
is older than [$TIMEDIFF $TIMEDIFFUNIT] compared to [$TIMELIMIT].
Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE].
Previous value: [$PREVVALUE], [$PREVDATE].

This is the general message body for combined limits messages:

MSG xxx: combined limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP] triggered.
Determined as [$FUNCTION].

Notification Scenarios

group auto limits, differ, every value

(These tests are: NTFY 01x)

As user “AmieAction” set group-auto-limits for group “Databasics”, on:

200 Continuous Hourly Values
- 210 Integer Values
  - Steps '[#]'

go to administration → limits → group autolimits → Databasics

detail:	Steps
average	differ
over	2
compare	!=
info	0
notify mode	every value
message	MSG 010: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered. Value [$VALUE '$UNIT'], [$TIMESTAMP]. Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT]. Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE]. Previous value: [$PREVVALUE], [$PREVDATE]. average_of....: $AVERAGE_OF(Steps/[#], 1h) count_of......: $COUNT_OF(Steps/[#], 1h) dev_of........: $DEV_OF(Steps/[#], 1h) differ_of.....: $DIFFER_OF(Steps/[#], 1h) first_of......: $FIRST_OF(Steps/[#], 1h) grad_of.......: $GRAD_OF(Steps/[#], 1h) last_of.......: $LAST_OF(Steps/[#], 1h) last-first_of.: $LAST-FIRST_OF(Steps/[#], 1h) max_of........: $MAX_OF(Steps/[#], 1h) max-min_of....: $MAX-MIN_OF(Steps/[#], 1h) min_of........: $MIN_OF(Steps/[#], 1h) prediction....: $PREDICTION(Steps/[#], 1h) sum_of........: $SUM_OF(Steps/[#], 1h) value_of......: $VALUE_OF(Steps/[#], 1h) unit_of.......: '$UNIT_OF(Steps/[#], 1h)'
destination	UTT:UTT Databasics
active	[x]

Verify, that the definition is properly propagated:

go to main menu → yesterday → ULS → testsrv12 → 200 Continuous Hourly Values → 210 Integer Values
click on

Test

Description

Result

Notes

NTFY 010

group-auto-limit, differ, numeric, definition and propagation of group auto limits

passed

That limit should fire three notifications per hour (xx:04, xx:24, xx:44). Verify that e.g. the next day:

go to main menu → yesterday → ULS → testsrv12 → @notifications → limits

There should be a lot of entries (timestamp and uttid will obviously be different):

timestamp	URL	destination	level	condition violation	message	uttid
2014-03-02 23:44:04	200 Continuous Hourly Values 210 Integer Values Steps	UTT:UTT Databasics :Databasics	INFO	1 != 0	MSG 010: limit notification for [ULS - testsrv12 - 200 Continuous Hourly Values - 210 Integer Values - Steps] triggered. Value [1 '[#]'], [2014-03-02 23:41:00]. Determined as [differ] over [2] values, compared by [!=] with limit [0]. Last value: [1], [2014-03-02 23:44:00], timestamp when saved: [2014-03-02 23:44:02]. Previous value: [-1], [2014-03-02 23:40:00]. average_of....: -0 count_of......: 60 dev_of........: 0.812855745674985 differ_of.....: 0 first_of......: 1 grad_of.......: -1.818838566268408 last_of.......: 1 last-first_of.: 0 max_of........: 1 max-min_of....: 2 min_of........: -1 prediction....: sum_of........: -1 value_of......: 1 unit_of.......: '[#]'	1503
2014-03-02 23:24:03	200 Continuous Hourly Values 210 Integer Values Steps	UTT:UTT Databasics :Databasics	INFO	1 != 0	MSG 010: limit notification for [ULS - testsrv12 - 200 Continuous Hourly Values - 210 Integer Values - Steps] triggered. Value [1 '[#]'], [2014-03-02 23:21:00]. Determined as [differ] over [2] values, compared by [!=] with limit [0]. Last value: [-1], [2014-03-02 23:24:00], timestamp when saved: [2014-03-02 23:24:01]. Previous value: [0], [2014-03-02 23:20:00]. average_of....: -0 count_of......: 60 dev_of........: 0.8128557456749851 differ_of.....: 0 first_of......: -1 grad_of.......: 0.5151430953042512 last_of.......: -1 last-first_of.: 0 max_of........: 1 max-min_of....: 2 min_of........: -1 prediction....: sum_of........: -1 value_of......: -1 unit_of.......: '[#]'	1499
2014-03-02 23:04:04	200 Continuous Hourly Values 210 Integer Values Steps	UTT:UTT Databasics :Databasics	INFO	1 != 0	MSG 010: limit notification for [ULS - testsrv12 - 200 Continuous Hourly Values - 210 Integer Values - Steps] triggered. Value [1 '[#]'], [2014-03-02 23:00:00]. Determined as [differ] over [2] values, compared by [!=] with limit [0]. Last value: [0], [2014-03-02 23:04:00], timestamp when saved: [2014-03-02 23:04:02]. Previous value: [1], [2014-03-02 22:59:00]. average_of....: -0 count_of......: 60 dev_of........: 0.8128557456749851 differ_of.....: 0 first_of......: 0 grad_of.......: 1.2486801889413726 last_of.......: 0 last-first_of.: 0 max_of........: 1 max-min_of....: 2 min_of........: -1 prediction....: sum_of........: -1 value_of......: 0 unit_of.......: '[#]'	1498
…	…	…	…	…	…	…

Test

Description

Result

Notes

NTFY 012

group-auto-limit, differ, numeric, group auto limits notifications fired

passed

As user “AmieAction” change the group auto limit for group “Databasics” and verify the changes:

go to administration → limits → group autolimits → Databasics
change only the body of the message (sequence of functions)

detail:	Steps
average	differ
over	2
compare	!=
info	0
notify mode	every value
message	MSG 010: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered. Value [$VALUE '$UNIT'], [$TIMESTAMP]. Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT]. Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE]. Previous value: [$PREVVALUE], [$PREVDATE]. count_of......: $COUNT_OF(Steps/[#], 1h) sum_of........: $SUM_OF(Steps/[#], 1h) average_of....: $AVERAGE_OF(Steps/[#], 1h) dev_of........: $DEV_OF(Steps/[#], 1h) differ_of.....: $DIFFER_OF(Steps/[#], 1h) first_of......: $FIRST_OF(Steps/[#], 1h) grad_of.......: $GRAD_OF(Steps/[#], 1h) last_of.......: $LAST_OF(Steps/[#], 1h) last-first_of.: $LAST-FIRST_OF(Steps/[#], 1h) max_of........: $MAX_OF(Steps/[#], 1h) max-min_of....: $MAX-MIN_OF(Steps/[#], 1h) min_of........: $MIN_OF(Steps/[#], 1h) prediction....: $PREDICTION(Steps/[#], 1h) value_of......: $VALUE_OF(Steps/[#], 1h) unit_of.......: '$UNIT_OF(Steps/[#], 1h)'
destination	UTT:UTT Databasics
active	[x]

Verify, that the definition is properly propagated:

go to main menu → today → ULS → testsrv12 → 200 Continuous Hourly Values → 210 Integer Values
click on
verify the applied changes

go to main menu → today → ULS → testsrv12 → @notifications → limits
verify the changed message body

Test

Description

Result

Notes

NTFY 014

group-auto-limit, differ, numeric, group auto limits changed and effectively applied

passed

Disable the group auto limit:

go to administration → limits → group autolimits → Databasics
deactivate the definition (for detail “Steps”)

Verify that no more notifications are fired:

go to main menu → today → ULS → testsrv12 → @notifications → limits
remember: three notifications per hour (xx:04, xx:24, xx:44)

Test

Description

Result

Notes

NTFY 016

group-auto-limit, differ, numeric, group auto limits notifications disabled

passed

You may now work on the generated tickets or continue with more notifications.

auto limits (domain), greater equal, 12h

(These tests are: NTFY 02x)

As user “SystematicGuy” set auto-limits for domain “Woodlark” on:

300 Continuous Daily Values / 320 Float Values / Percentage '%', matches only testsrv22.

Go to administration → limits → set auto limits (domain “Woodlark” is chosen automatically).

server:
section:	300*
teststep:
detail:	Percentage
average	avg
over	10
compare	>=
warn	95
notify mode	12h
message	MSG 020: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered. Value [$VALUE '$UNIT'], [$TIMESTAMP]. Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT]. Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE]. Previous value: [$PREVVALUE], [$PREVDATE]. average_of....: $AVERAGE_OF(Percentage/%, 24h) count_of......: $COUNT_OF(Percentage/%, 24h) dev_of........: $DEV_OF(Percentage/%, 24h) differ_of.....: $DIFFER_OF(Percentage/%, 24h) first_of......: $FIRST_OF(Percentage/%, 24h) grad_of.......: $GRAD_OF(Percentage/%, 24h) last_of.......: $LAST_OF(Percentage/%, 24h) last-first_of.: $LAST-FIRST_OF(Percentage/%, 24h) max_of........: $MAX_OF(Percentage/%, 24h) max-min_of....: $MAX-MIN_OF(Percentage/%, 24h) min_of........: $MIN_OF(Percentage/%, 24h) prediction....: $PREDICTION(Percentage/%, 1h, 1h) sum_of........: $SUM_OF(Percentage/%, 24h) value_of......: $VALUE_OF(Percentage/%) unit_of.......: '$UNIT_OF(Percentage/%)'
destination	UTT:UTT Systemaniacs
active	[x]

Verify, that the definition is properly propagated:

go to main menu → today → Woodlark → testsrv22 → 300 Continuous Daily Values → 320 Float Values
click on

Test

Description

Result

Notes

NTFY 020

auto limits (domain), greater equal, 12h: definition and propagation

passed

Description (the timing may differ by several minutes):

Percentage is a sine wave, 80..100..60..80. Needs a day for a complete curve.
Limit is violated at some values after 95 (avg 10), at 04:14.
At around 10:15 the values will fall below limit,
re-notification shall take place after 12h, so nothing may happen at 16:10.
Next notification at the next day at 04:14.

That limit should fire one notifications each day at 04:14. Verify that e.g. the next day and the following days:

go to main menu → for 7 days → Woodlark → testsrv22 → @notifications → limits

timestamp

URL

destination

level

condition violation

message

uttid

2014-03-03 04:14:04

300 Continuous Daily Values 320 Float Values Percentage

UTT:UTT Systemaniacs:Systemaniacs

WARN

95.475479 >= 95

MSG 020: limit notification for [Woodlark - testsrv22 - 300 Continuous Daily Values - 320 Float Values - Percentage] triggered.
Value [95.475479 '%'], [2014-03-03 04:10:00].
Determined as [avg] over [10] values, compared by [>=] with limit [95].
Last value: [97.7402166635644], [2014-03-03 04:10:00], timestamp when saved: [2014-03-03 04:10:02].
Previous value: [97.3205080], [2014-03-03 04:00:00].

average_of....: 79.99999995
count_of......: 144
dev_of........: 14.191497507192564
differ_of.....: 1
first_of......: 98.1261557
grad_of.......: -0.7040141085748833
last_of.......: 97.7402166
last-first_of.: -0.38593910000000164
max_of........: 100
max-min_of....: 40
min_of........: 60
prediction....: 100.8945304948003
sum_of........: 11519.999993200001
value_of......: 97.7402166
unit_of.......: '%'

3029

The above notification must appear each day.

Test

Description

Result

Notes

NTFY 022

auto limits (domain), greater equal, 12h: notifications fired

passed

Disable the domain auto limit:

go to administration → limits → set auto limits
deactivate the definition

Verify, that the deactivation is properly propagated:

go to main menu → today → Woodlark → testsrv22 → 300 Continuous Daily Values → 320 Float Values
click on
the effective limit definition must be ~~active~~

Test

Description

Result

Notes

NTFY 024

auto limits (domain), greater equal, 12h: deactivation properly propagated

passed

Verify during the next days that no more notifications are fired:

go to main menu → for 7 days → Woodlark → testsrv22 → @notifications → limits
no more notifications (04:14 every day)

Test

Description

Result

Notes

NTFY 026

auto limits (domain), greater equal, 12h: notifications disabled

passed

You may now work on the generated tickets or continue with more notifications.

manual limits, substring + collect, regular expression + every value

(These tests are: NTFY 03x)

As user “SystematicGuy” try to set limits for domain “ULS”:

go to main menu → today → ULS → testsrv11 → 200 Continuous Hourly Values → 230 Text Expressions
click on

Verify that no limits can be defined. Possibly existing limits are shown only.

Test

Description

Result

Notes

NTFY 030

manual limits, substring + collect, regular expression + every value: defined read-only rights on domain ULS do work

style=“color:green”

As user “SystematicGuy” define the first limit:

go to main menu → today → Woodlark → testsrv21 → 200 Continuous Hourly Values → 230 Text Expressions
click on

detail:	Proportional Expression
average	last
over	1
compare	~\|
error	^v{5}\|v{10}$
notify mode	every value
message	MSG 030: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered. Value [$VALUE '$UNIT'], [$TIMESTAMP]. Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT]. Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE]. Previous value: [$PREVVALUE], [$PREVDATE]. count_of......: $COUNT_OF(Proportional Expression, 1h) (60) differ_of.....: $DIFFER_OF(Proportional Expression, 1h) (1) first_of......: $FIRST_OF(Proportional Expression, 1h) (w v x \| V U W \| 1 Z 2) last_of.......: $LAST_OF(Proportional Expression, 1h) (v u w \| U T V \| Z Y 1) max_of........: $MAX_OF(Proportional Expression, 1h) (z y A) min_of........: $MIN_OF(Proportional Expression, 1h) (1 Z 2) regcount......: $REGCOUNT(Proportional Expression, c.b, 1h) (2) value_of......: $VALUE_OF(Proportional Expression, 1h) (u t v \| v u w \| U T V \| V U W) unit_of.......: '$UNIT_OF(Proportional Expression, 1h)' (blank)
destination	UTT:UTT Systemaniacs
active	[x]

Define the second limit right below in the same form:

detail:	proportional expressions separated by blank line for same time stamp
average	last
over	1
compare	~~\|
info	vvvvv
notify mode	collect
message	MSG 031: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered. Value [$VALUE '$UNIT'], [$TIMESTAMP] (up to 10 minutes before timestamp of notification). Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT]. Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE]. Previous value: [$PREVVALUE], [$PREVDATE]. count_of......: $COUNT_OF(proportional expressions separated by blank line for same time stamp, 1h) (180) differ_of.....: $DIFFER_OF(proportional expressions separated by blank line for same time stamp, 1h) (0) first_of......: $FIRST_OF(proportional expressions separated by blank line for same time stamp, 1h) (G 6) last_of.......: $LAST_OF(proportional expressions separated by blank line for same time stamp, 1h) (G 6) max_of........: $MAX_OF(proportional expressions separated by blank line for same time stamp, 1h) (Z z) min_of........: $MIN_OF(proportional expressions separated by blank line for same time stamp, 1h) (1) regcount......: $REGCOUNT(proportional expressions separated by blank line for same time stamp, y.*y, 1h) (6) value_of......: $VALUE_OF(proportional expressions separated by blank line for same time stamp, 1h) (u t v \| v u w \| w v x \| U T V \| V U W \| W V X) unit_of.......: '$UNIT_OF(proportional expressions separated by blank line for same time stamp, 1h)' ('[N]')
destination	UTT:UTT Systemaniacs
active	[x]

Verify that notifications are fired, wait for at least one whole hour:

go to main menu → yesterday → Woodlark → testsrv21 → @notifications → limits

“MSG 030” (regular expression + every value) should have fired (test_limits on the ULS-server MUST be executed at */5)

two times at xx:29:04 (the seconds may differ)
once at xx:54:04
once at xx:59:04

The messages should look like the following table. Use auto ext. details selection (extended auto details selection) and specify (some of them are already prefilled):

domaines	Woodlark
server	testsrv21
sections	@notifications
teststeps	limits
detail	message

Further down:

filter column	comparison	expression
message	~	MSG 030

Date and hour in message will differ, pay attention to the chronological order used here:

timestamp	message
yyyy-mm-dd hh:29:ss	MSG 030: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - Proportional Expression] triggered. Value [uuuuuuuuuuuuuuuuuuuu tttttttttttttttttttt vvvvvvvvvvvvvvvvvvvv ' '], [2014-03-13 23:28:00]. Determined as [last] over [1] values, compared by [~\|] with limit [^v{5}\|v{10}$]. Last value: [vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww], [2014-03-13 23:29:00], timestamp when saved: [2014-03-13 23:29:02]. Previous value: [tttttttttttttttttttt ssssssssssssssssssss uuuuuuuuuuuuuuuuuuuu], [2014-03-13 23:27:00]. count_of......: 60 (60) differ_of.....: 1 (1) first_of......: wwwwwwwwwwwwwwwwwwww vvvvvvvvvvvvvvvvvvvv xxxxxxxxxxxxxxxxxxxx (w v x \| V U W \| 1 Z 2) last_of.......: vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww (v u w \| U T V \| Z Y 1) max_of........: zzzzzzzzzzzzzzzzzzzz yyyyyyyyyyyyyyyyyyyy AAAAAAAAAAAAAAAAAAAA (z y A) min_of........: 11111111111111111111 ZZZZZZZZZZZZZZZZZZZZ 22222222222222222222 (1 Z 2) regcount......: 2 (2) value_of......: uuuuuuuuuuuuuuuuuuuu tttttttttttttttttttt vvvvvvvvvvvvvvvvvvvv (u t v \| v u w \| U T V \| V U W) unit_of.......: ' ' (blank)
yyyy-mm-dd hh:29:ss	MSG 030: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - Proportional Expression] triggered. Value [vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww ' '], [2014-03-13 23:29:00]. Determined as [last] over [1] values, compared by [~\|] with limit [^v{5}\|v{10}$]. Last value: [vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww], [2014-03-13 23:29:00], timestamp when saved: [2014-03-13 23:29:02]. Previous value: [uuuuuuuuuuuuuuuuuuuu tttttttttttttttttttt vvvvvvvvvvvvvvvvvvvv], [2014-03-13 23:28:00]. count_of......: 60 (60) differ_of.....: 1 (1) first_of......: wwwwwwwwwwwwwwwwwwww vvvvvvvvvvvvvvvvvvvv xxxxxxxxxxxxxxxxxxxx (w v x \| V U W \| 1 Z 2) last_of.......: vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww (v u w \| U T V \| Z Y 1) max_of........: zzzzzzzzzzzzzzzzzzzz yyyyyyyyyyyyyyyyyyyy AAAAAAAAAAAAAAAAAAAA (z y A) min_of........: 11111111111111111111 ZZZZZZZZZZZZZZZZZZZZ 22222222222222222222 (1 Z 2) regcount......: 2 (2) value_of......: vvvvvvvvvvvvvvvvvvvv uuuuuuuuuuuuuuuuuuuu wwwwwwwwwwwwwwwwwwww (u t v \| v u w \| U T V \| V U W) unit_of.......: ' ' (blank)
yyyy-mm-dd hh:54:ss	MSG 030: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - Proportional Expression] triggered. Value [UUUUUUUUUUUUUUUUUUUU TTTTTTTTTTTTTTTTTTTT VVVVVVVVVVVVVVVVVVVV ' '], [2014-03-13 23:54:00]. Determined as [last] over [1] values, compared by [~\|] with limit [^v{5}\|v{10}$]. Last value: [UUUUUUUUUUUUUUUUUUUU TTTTTTTTTTTTTTTTTTTT VVVVVVVVVVVVVVVVVVVV], [2014-03-13 23:54:00], timestamp when saved: [2014-03-13 23:54:01]. Previous value: [TTTTTTTTTTTTTTTTTTTT SSSSSSSSSSSSSSSSSSSS UUUUUUUUUUUUUUUUUUUU], [2014-03-13 23:53:00]. count_of......: 60 (60) differ_of.....: 1 (1) first_of......: VVVVVVVVVVVVVVVVVVVV UUUUUUUUUUUUUUUUUUUU WWWWWWWWWWWWWWWWWWWW (w v x \| V U W \| 1 Z 2) last_of.......: UUUUUUUUUUUUUUUUUUUU TTTTTTTTTTTTTTTTTTTT VVVVVVVVVVVVVVVVVVVV (v u w \| U T V \| Z Y 1) max_of........: zzzzzzzzzzzzzzzzzzzz yyyyyyyyyyyyyyyyyyyy AAAAAAAAAAAAAAAAAAAA (z y A) min_of........: 11111111111111111111 ZZZZZZZZZZZZZZZZZZZZ 22222222222222222222 (1 Z 2) regcount......: 2 (2) value_of......: UUUUUUUUUUUUUUUUUUUU TTTTTTTTTTTTTTTTTTTT VVVVVVVVVVVVVVVVVVVV (u t v \| v u w \| U T V \| V U W) unit_of.......: ' ' (blank)
yyyy-mm-dd hh:59:ss	MSG 030: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - Proportional Expression] triggered. Value [VVVVVVVVVVVVVVVVVVVV UUUUUUUUUUUUUUUUUUUU WWWWWWWWWWWWWWWWWWWW ' '], [2014-03-13 23:55:00]. Determined as [last] over [1] values, compared by [~\|] with limit [^v{5}\|v{10}$]. Last value: [ZZZZZZZZZZZZZZZZZZZZ YYYYYYYYYYYYYYYYYYYY 11111111111111111111], [2014-03-13 23:59:00], timestamp when saved: [2014-03-13 23:59:01]. Previous value: [UUUUUUUUUUUUUUUUUUUU TTTTTTTTTTTTTTTTTTTT VVVVVVVVVVVVVVVVVVVV], [2014-03-13 23:54:00]. count_of......: 60 (60) differ_of.....: 1 (1) first_of......: 11111111111111111111 ZZZZZZZZZZZZZZZZZZZZ 22222222222222222222 (w v x \| V U W \| 1 Z 2) last_of.......: ZZZZZZZZZZZZZZZZZZZZ YYYYYYYYYYYYYYYYYYYY 11111111111111111111 (v u w \| U T V \| Z Y 1) max_of........: zzzzzzzzzzzzzzzzzzzz yyyyyyyyyyyyyyyyyyyy AAAAAAAAAAAAAAAAAAAA (z y A) min_of........: 11111111111111111111 ZZZZZZZZZZZZZZZZZZZZ 22222222222222222222 (1 Z 2) regcount......: 2 (2) value_of......: VVVVVVVVVVVVVVVVVVVV UUUUUUUUUUUUUUUUUUUU WWWWWWWWWWWWWWWWWWWW (u t v \| v u w \| U T V \| V U W) unit_of.......: ' ' (blank)

Result:

Test

Description

Result

Notes

NTFY 032

manual limits, regular expression + every value: notifications fired

passed

For “MSG 031” it should have fired (test_limits MUST be executed at */5, the seconds may differ)

once at xx:04:04 (3x MSG 031 in one notification, because of “collect”)
once at xx:39:04 (3x MSG 031 in one notification, because of “collect”)

The messages should look like (date and hour in message will differ), use “MSG 031” as value filter like above:

timestamp

message

yyyy-mm-dd hh:04:ss

MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [VVVVVVVVVVVVVVVVVVVV '[N]'], [2014-03-16 22:54:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [66666666666666666666], [2014-03-16 23:04:00], timestamp when saved: [2014-03-16 23:04:01].
Previous value: [TTTTTTTTTTTTTTTTTTTT], [2014-03-16 22:54:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: 66666666666666666666 (G 6)
last_of.......: 66666666666666666666 (G 6)
max_of........: zzzzzzzzzzzzzzzzzzzz (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: UUUUUUUUUUUUUUUUUUUU
TTTTTTTTTTTTTTTTTTTT
VVVVVVVVVVVVVVVVVVVV (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')
MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [VVVVVVVVVVVVVVVVVVVV '[N]'], [2014-03-16 22:55:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [66666666666666666666], [2014-03-16 23:04:00], timestamp when saved: [2014-03-16 23:04:01].
Previous value: [UUUUUUUUUUUUUUUUUUUU], [2014-03-16 22:55:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: 66666666666666666666 (G 6)
last_of.......: 66666666666666666666 (G 6)
max_of........: zzzzzzzzzzzzzzzzzzzz (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: VVVVVVVVVVVVVVVVVVVV
UUUUUUUUUUUUUUUUUUUU
WWWWWWWWWWWWWWWWWWWW (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')
MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [VVVVVVVVVVVVVVVVVVVV '[N]'], [2014-03-16 22:56:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [66666666666666666666], [2014-03-16 23:04:00], timestamp when saved: [2014-03-16 23:04:01].
Previous value: [VVVVVVVVVVVVVVVVVVVV], [2014-03-16 22:56:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: 66666666666666666666 (G 6)
last_of.......: 66666666666666666666 (G 6)
max_of........: zzzzzzzzzzzzzzzzzzzz (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: WWWWWWWWWWWWWWWWWWWW
VVVVVVVVVVVVVVVVVVVV
XXXXXXXXXXXXXXXXXXXX (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')

yyyy-mm-dd hh:39:ss

MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [vvvvvvvvvvvvvvvvvvvv '[N]'], [2014-03-16 22:28:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [GGGGGGGGGGGGGGGGGGGG], [2014-03-16 22:39:00], timestamp when saved: [2014-03-16 22:39:02].
Previous value: [tttttttttttttttttttt], [2014-03-16 22:28:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: GGGGGGGGGGGGGGGGGGGG (G 6)
last_of.......: GGGGGGGGGGGGGGGGGGGG (G 6)
max_of........: ZZZZZZZZZZZZZZZZZZZZ (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: uuuuuuuuuuuuuuuuuuuu
tttttttttttttttttttt
vvvvvvvvvvvvvvvvvvvv (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')
MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [vvvvvvvvvvvvvvvvvvvv '[N]'], [2014-03-16 22:29:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [GGGGGGGGGGGGGGGGGGGG], [2014-03-16 22:39:00], timestamp when saved: [2014-03-16 22:39:02].
Previous value: [uuuuuuuuuuuuuuuuuuuu], [2014-03-16 22:29:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: GGGGGGGGGGGGGGGGGGGG (G 6)
last_of.......: GGGGGGGGGGGGGGGGGGGG (G 6)
max_of........: ZZZZZZZZZZZZZZZZZZZZ (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: vvvvvvvvvvvvvvvvvvvv
uuuuuuuuuuuuuuuuuuuu
wwwwwwwwwwwwwwwwwwww (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')
MSG 031: limit notification for [Woodlark - testsrv21 - 200 Continuous Hourly Values - 230 Text Expressions - proportional expressions separated by blank line for same time stamp] triggered.
Value [vvvvvvvvvvvvvvvvvvvv '[N]'], [2014-03-16 22:30:00] (up to 10 minutes before timestamp of notification).
Determined as [last] over [1] values, compared by [~~|] with limit [vvvvv].
Last value: [GGGGGGGGGGGGGGGGGGGG], [2014-03-16 22:39:00], timestamp when saved: [2014-03-16 22:39:02].
Previous value: [vvvvvvvvvvvvvvvvvvvv], [2014-03-16 22:30:00].

count_of......: 180 (180)
differ_of.....: 0 (0)
first_of......: GGGGGGGGGGGGGGGGGGGG (G 6)
last_of.......: GGGGGGGGGGGGGGGGGGGG (G 6)
max_of........: ZZZZZZZZZZZZZZZZZZZZ (Z z)
min_of........: 11111111111111111111 (1)
regcount......: 6 (6)
value_of......: wwwwwwwwwwwwwwwwwwww
vvvvvvvvvvvvvvvvvvvv
xxxxxxxxxxxxxxxxxxxx (u t v | v u w | w v x | U T V | V U W | W V X)
unit_of.......: '[N]' ('[N]')

Verify that the timestamp of the notification is 10 minutes ahead of the timestamp in the message

Test

Description

Result

Notes

NTFY 034

manual limits, substring + collect: notifications fired

passed

Disabling

Disable the manual limit:

go to main menu → today → Woodlark → testsrv21 → 200 Continuous Hourly Values → 230 Text Expressions
click on
click on suspension

date from

<today>

to

! days

monthdays

<for tomorrow> - <for tomorrow> + 7

( depending on the current day of month the “monthdays” may fall into the following month. You need to split up the suspension definition then)

Click and verify that “Monitoring suspensions are defined for this server.” is displayed on the “set limits” page.

Verify, that the deactivation works. No more notifications “MSG 030” may be generated:

go to main menu → yesterday → Woodlark → testsrv21 → @notifications → limits

But “MSG 031” are still generated.

Test

Description

Result

Notes

NTFY 036

manual limits, regular expression + every value: deactivation during defined days of month works

passed

After the defined days of month, the notification must be fired again.

Test

Description

Result

Notes

NTFY 037

manual limits, regular expression + every value: active outside defined days of month works

passed

Go to administration → monitoring suspension → Woodlark and remove the entry for “detail” and the entry for “unit” (which is a blank and therefor, obviously, not visible).

As user “SystematicGuy” verify, that the deactivation works. No more notifications “MSG 031” may be generated:

go to main menu → yesterday → Woodlark → testsrv21 → @notifications → limits

Test

Description

Result

Notes

NTFY 038

manual limits, substring + collect: deactivation works

passed

group based limits, numeric value, 24h, all priority levels with reset by "info"

(These tests are: NTFY 04x)

As user “TheSpyder” set group-auto-limits for group “Databasics” on:

300 Continuous Daily Values
- 320 Float Values
  - Voltage [V]

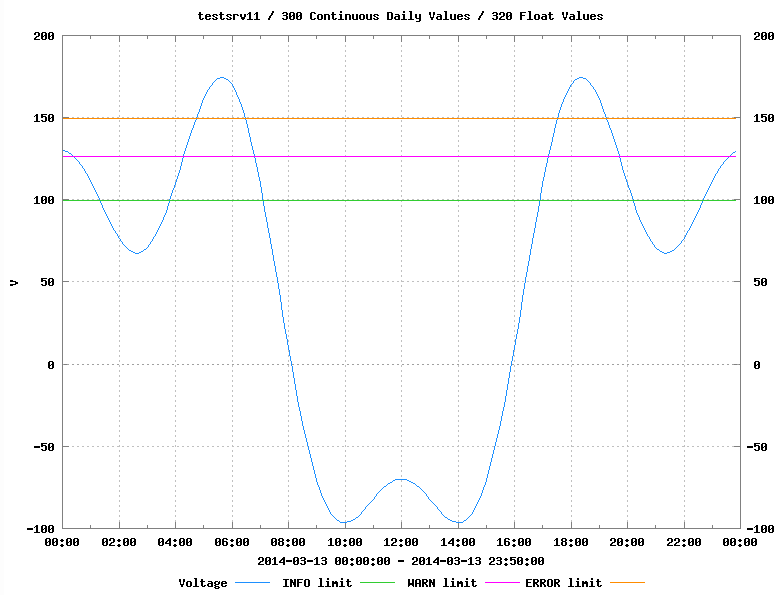

The Values look like (go to main menu → yesterday → ULS → testsrv11 → 300 Continuous Daily Values → 320 Float Values → Voltage ):

go to administration → limits → group autolimits → Databasics

detail:

! unit:

V

average

last

over

1

compare

>

info

99.555

warn

126.666667

error

0.14975e+03

notify mode

24h

message

MSG 040: limit notification for [$DOMAIN - $SERVER - $SECTION - $TESTSTEP - $DETAIL] triggered.
Value [$VALUE '$UNIT'], [$TIMESTAMP].
Determined as [$FUNCTION] over [$AVERAGEOVER] values, compared by [$COMPARE] with limit [$LIMIT].
Last value: [$LASTVALUE], [$LASTDATE], timestamp when saved: [$SAVEDATE].
Previous value: [$PREVVALUE], [$PREVDATE].

average_of....: $AVERAGE_OF(Voltage/V, 1d)
count_of......: $COUNT_OF(Voltage/V, 1d)
dev_of........: $DEV_OF(Voltage/V, 1d)
differ_of.....: $DIFFER_OF(Voltage/V, 1d)
first_of......: $FIRST_OF(Voltage/V, 1d)
grad_of.......: $GRAD_OF(Voltage/V, 1d)
last_of.......: $LAST_OF(Voltage/V, 1d)
last-first_of.: $LAST-FIRST_OF(Voltage/V, 1d)
max_of........: $MAX_OF(Voltage/V, 1d)
max-min_of....: $MAX-MIN_OF(Voltage/V, 1d)
min_of........: $MIN_OF(Voltage/V, 1d)
prediction....: $PREDICTION(Voltage/V, 1d)
sum_of........: $SUM_OF(Voltage/V, 1d)
value_of......: $VALUE_OF(Voltage/V)
unit_of.......: '$UNIT_OF(Voltage/V)'

destination

UTT:UTT Databasics

active

[x]

some numerical aggregation functions do not work with a numeric range, only with time range!

(A) Propagation of definition

As user “TheSpyder” verify, that the definition is properly propagated:

go to main menu → yesterday → ULS → testsrv11 → 300 Continuous Daily Values → 320 Float Values
click on

Test

Description

Result

Notes

NTFY 040

group based limits, numeric value, 24h, all priority levels with reset by “info”: definition and propagation

passed

== (B) Notifications fired ==

That limit should fire 8 notifications per day:

03:54 INFO, 04:24 WARN, 04:54 ERROR
17:04 INFO, 17:24 WARN, 17:44 ERROR
22:54 INFO, 23:44 WARN

As user “TheSpyder” verify that e.g. the next day:

go to main menu → yesterday → ULS → testsrv11 → @notifications → limits

There should be 8 entries (timestamp and uttid will obviously be different):

timestamp	URL	destination	level	condition violation	message	uttid
2014-03-20 23:44:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	WARN	127.667558 > 126.666667	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [127.667558 'V'], [2014-03-20 23:40:00]. Determined as [last] over [1] values, compared by [>] with limit [126.666667]. Last value: [1.276675581e+02], [2014-03-20 23:40:00], timestamp when saved: [2014-03-20 23:40:03]. Previous value: [1.248309485e+02], [2014-03-20 23:30:00]. average_of....: 50.00000000170837 count_of......: 144 dev_of........: 93.59935449150665 differ_of.....: 1 first_of......: 1.294115809e+02 grad_of.......: -0.41464354109552093 last_of.......: 1.276675581e+02 last-first_of.: -1.7440227999999962 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246005 value_of......: 1.276675581e+02 unit_of.......: 'V'	6254
2014-03-20 22:54:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	105.132059 > 99.555	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [105.132059 'V'], [2014-03-20 22:50:00]. Determined as [last] over [1] values, compared by [>] with limit [99.555]. Last value: [1.051320591e+02], [2014-03-20 22:50:00], timestamp when saved: [2014-03-20 22:50:03]. Previous value: [9.902855994e+01], [2014-03-20 22:40:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.109708044e+02 grad_of.......: -1.6327622195900913 last_of.......: 1.051320591e+02 last-first_of.: -5.838745299999999 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246002 value_of......: 1.051320591e+02 unit_of.......: 'V'	6251
2014-03-20 17:44:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	ERROR	157.2056 > 0.14975e+03	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [157.2056 'V'], [2014-03-20 17:40:00]. Determined as [last] over [1] values, compared by [>] with limit [0.14975e+03]. Last value: [1.572055995e+02], [2014-03-20 17:40:00], timestamp when saved: [2014-03-20 17:40:03]. Previous value: [1.478634588e+02], [2014-03-20 17:30:00]. average_of....: 50.00000000170835 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.646120778e+02 grad_of.......: -8.563189478170608 last_of.......: 1.572055995e+02 last-first_of.: -7.406478300000003 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246003 value_of......: 1.572055995e+02 unit_of.......: 'V'	6239
2014-03-20 17:24:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	WARN	136.715888 > 126.666667	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [136.715888 'V'], [2014-03-20 17:20:00]. Determined as [last] over [1] values, compared by [>] with limit [126.666667]. Last value: [1.367158878e+02], [2014-03-20 17:20:00], timestamp when saved: [2014-03-20 17:20:02]. Previous value: [1.239369642e+02], [2014-03-20 17:10:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150665 differ_of.....: 1 first_of......: 1.478634588e+02 grad_of.......: -9.275269159740617 last_of.......: 1.367158878e+02 last-first_of.: -11.147571 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246002 value_of......: 1.367158878e+02 unit_of.......: 'V'	6237
2014-03-20 17:04:04	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	109.739874 > 99.555	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [109.739874 'V'], [2014-03-20 17:00:00]. Determined as [last] over [1] values, compared by [>] with limit [99.555]. Last value: [1.097398738e+02], [2014-03-20 17:00:00], timestamp when saved: [2014-03-20 17:00:03]. Previous value: [9.437107032e+01], [2014-03-20 16:50:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150665 differ_of.....: 1 first_of......: 1.239369642e+02 grad_of.......: -9.83311846496144 last_of.......: 1.097398738e+02 last-first_of.: -14.197090400000008 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246001 value_of......: 1.097398738e+02 unit_of.......: 'V'	6236
2014-03-20 04:54:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	ERROR	154.51223 > 0.14975e+03	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [154.51223 'V'], [2014-03-20 04:50:00]. Determined as [last] over [1] values, compared by [>] with limit [0.14975e+03]. Last value: [1.545122302e+02], [2014-03-20 04:50:00], timestamp when saved: [2014-03-20 04:50:03]. Previous value: [1.465075342e+02], [2014-03-20 04:40:00]. average_of....: 50.00000000170835 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.615036828e+02 grad_of.......: 5.241058532705638 last_of.......: 1.545122302e+02 last-first_of.: -6.991452600000002 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246003 value_of......: 1.545122302e+02 unit_of.......: 'V'	6207
2014-03-20 04:24:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	WARN	128.57455 > 126.666667	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [128.57455 'V'], [2014-03-20 04:20:00]. Determined as [last] over [1] values, compared by [>] with limit [126.666667]. Last value: [1.285745500e+02], [2014-03-20 04:20:00], timestamp when saved: [2014-03-20 04:20:03]. Previous value: [1.192242047e+02], [2014-03-20 04:10:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.377658179e+02 grad_of.......: 4.238282457218251 last_of.......: 1.285745500e+02 last-first_of.: -9.191267900000014 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246002 value_of......: 1.285745500e+02 unit_of.......: 'V'	6205
2014-03-20 03:54:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	101.173859 > 99.555	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [101.173859 'V'], [2014-03-20 03:50:00]. Determined as [last] over [1] values, compared by [>] with limit [99.555]. Last value: [1.011738587e+02], [2014-03-20 03:50:00], timestamp when saved: [2014-03-20 03:50:03]. Previous value: [9.299683151e+01], [2014-03-20 03:40:00]. average_of....: 50.00000000170837 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.100000000e+02 grad_of.......: 3.5167242060472357 last_of.......: 1.011738587e+02 last-first_of.: -8.826141300000003 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246005 value_of......: 1.011738587e+02 unit_of.......: 'V'	6203

Test

Description

Result

Notes

NTFY 042

group based limits, numeric value, 24h, all priority levels with reset by “info”: notifications fired

passed

== (C) Changing the definition ==

As user “TheSpyder” change the group-auto-limits for group “Databasics”:

go to administration → limits → group autolimits → Databasics

detail:

! unit:

V

average

last

over

1

compare

>

info

100

warn

130.0

error

1.4975e02

As user “TheSpyder” verify, that the change of the definition is properly propagated:

go to main menu → yesterday → ULS → testsrv11 → @notifications → limits

And verify that the limit now fires only 7 notifications per day:

03:54 INFO, 04:34 WARN, 04:54 ERROR
17:04 INFO, 17:24 WARN, 17:44 ERROR
22:54 INFO

timestamp	URL	destination	level	condition violation	message	uttid
2014-04-06 22:54:04	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	105.132059 > 100	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [105.132059 'V'], [2014-04-06 22:50:00]. Determined as [last] over [1] values, compared by [>] with limit [100]. Last value: [1.051320591e+02], [2014-04-06 22:50:00], timestamp when saved: [2014-04-06 22:50:03]. Previous value: [9.902855994e+01], [2014-04-06 22:40:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.109708044e+02 grad_of.......: -1.6327622195900962 last_of.......: 1.051320591e+02 last-first_of.: -5.838745299999999 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246002 value_of......: 1.051320591e+02 unit_of.......: 'V'	6251
2014-04-06 17:44:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	ERROR	157.2056 > 1.4975e02	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [157.2056 'V'], [2014-04-06 17:40:00]. Determined as [last] over [1] values, compared by [>] with limit [1.4975e02]. Last value: [1.572055995e+02], [2014-04-06 17:40:00], timestamp when saved: [2014-04-06 17:40:02]. Previous value: [1.478634588e+02], [2014-04-06 17:30:00]. average_of....: 50.00000000170835 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.646120778e+02 grad_of.......: -8.563189478170608 last_of.......: 1.572055995e+02 last-first_of.: -7.406478300000003 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246003 value_of......: 1.572055995e+02 unit_of.......: 'V'	6239
2014-04-06 17:24:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	WARN	136.715888 > 130.0	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [136.715888 'V'], [2014-04-06 17:20:00]. Determined as [last] over [1] values, compared by [>] with limit [130.0]. Last value: [1.367158878e+02], [2014-04-06 17:20:00], timestamp when saved: [2014-04-06 17:20:03]. Previous value: [1.239369642e+02], [2014-04-06 17:10:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150665 differ_of.....: 1 first_of......: 1.478634588e+02 grad_of.......: -9.275269159740617 last_of.......: 1.367158878e+02 last-first_of.: -11.147571 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246002 value_of......: 1.367158878e+02 unit_of.......: 'V'	6237
2014-04-06 17:04:04	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	109.739874 > 100	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [109.739874 'V'], [2014-04-06 17:00:00]. Determined as [last] over [1] values, compared by [>] with limit [100]. Last value: [1.097398738e+02], [2014-04-06 17:00:00], timestamp when saved: [2014-04-06 17:00:04]. Previous value: [9.437107032e+01], [2014-04-06 16:50:00]. average_of....: 50.00000000170834 count_of......: 144 dev_of........: 93.59935449150665 differ_of.....: 1 first_of......: 1.239369642e+02 grad_of.......: -9.83311846496144 last_of.......: 1.097398738e+02 last-first_of.: -14.197090400000008 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246001 value_of......: 1.097398738e+02 unit_of.......: 'V'	6236
2014-04-06 04:54:04	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	ERROR	154.51223 > 1.4975e02	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [154.51223 'V'], [2014-04-06 04:50:00]. Determined as [last] over [1] values, compared by [>] with limit [1.4975e02]. Last value: [1.545122302e+02], [2014-04-06 04:50:00], timestamp when saved: [2014-04-06 04:50:03]. Previous value: [1.465075342e+02], [2014-04-06 04:40:00]. average_of....: 50.00000000170835 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.615036828e+02 grad_of.......: 5.24105853270564 last_of.......: 1.545122302e+02 last-first_of.: -6.991452600000002 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246003 value_of......: 1.545122302e+02 unit_of.......: 'V'	6207
2014-04-06 04:34:03	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	WARN	137.765818 > 130.0	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [137.765818 'V'], [2014-04-06 04:30:00]. Determined as [last] over [1] values, compared by [>] with limit [130.0]. Last value: [1.377658179e+02], [2014-04-06 04:30:00], timestamp when saved: [2014-04-06 04:30:03]. Previous value: [1.285745500e+02], [2014-04-06 04:20:00]. average_of....: 50.00000000170835 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.465075342e+02 grad_of.......: 4.543039577482396 last_of.......: 1.377658179e+02 last-first_of.: -8.741716300000007 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246003 value_of......: 1.377658179e+02 unit_of.......: 'V'	6205
2014-04-06 03:54:04	300 Continuous Daily Values 320 Float Values Voltage	UTT:UTT Databasics :Databasics	INFO	101.173859 > 100	MSG 040: limit notification for [ULS - testsrv11 - 300 Continuous Daily Values - 320 Float Values - Voltage] triggered. Value [101.173859 'V'], [2014-04-06 03:50:00]. Determined as [last] over [1] values, compared by [>] with limit [100]. Last value: [1.011738587e+02], [2014-04-06 03:50:00], timestamp when saved: [2014-04-06 03:50:02]. Previous value: [9.299683151e+01], [2014-04-06 03:40:00]. average_of....: 50.00000000170837 count_of......: 144 dev_of........: 93.59935449150662 differ_of.....: 1 first_of......: 1.100000000e+02 grad_of.......: 3.516724206047228 last_of.......: 1.011738587e+02 last-first_of.: -8.826141300000003 max_of........: 174.636748 max-min_of....: 271.23928838 min_of........: -96.60254038 prediction....: sum_of........: 7200.000000246005 value_of......: 1.011738587e+02 unit_of.......: 'V'	6203

Test

Description

Result

Notes

NTFY 047

group based limits, numeric value, 24h, all priority levels with reset by “info”: changed definition

passed

(D) Disabling the definition

As user “TheSpyder” change the group-auto-limits for group “Databasics”:

go to administration → limits → group auto limits → Databasics
deactivate the definition containing “MSG 040”

Verify the next day that no more notifications are fired:

go to main menu → yesterday → ULS → testsrv11 → @notifications → limits

Test

Description

Result

Notes

NTFY 048

group based limits, numeric value, 24h, all priority levels with reset by “info”: notifications disabled

isAlive

CombiLimits

As user “SystematicGuy” set auto-limits for domain “Woodlark” on:

300 Continuous Daily Values
- 320 Float Values
  - Energy '[E]': Wh, kWh, MWh

and use a function to calculate to the correct unit

Relation Changes

These are all preliminary notes:

server changes domain: check that old limits are disregarded and the limits of new domain are applied.

server changes name (in same domain): check that old limits are disregarded and the matching limits are applied.

group gets new domain member: are the group limits are applied to the new member.

Notification Scenarios on Aggregated Values

Threshold violations

Define various possible notification scenarios on aggregated values and verify the correctly generated notifications

ULS ticket tracking: threshold violations generate notifications and tickets. ULS users can work on those tickets and document their actions.

Monitoring suspension

¹⁾

si-unit based recalculation

Universal Logging System

Sidebar

Table of Contents

Notifications

Variations of Notifications

Notification Parameters for Limits

General Message Body

Notification Scenarios

group auto limits, differ, every value

auto limits (domain), greater equal, 12h

manual limits, substring + collect, regular expression + every value

group based limits, numeric value, 24h, all priority levels with reset by "info"

(A) Propagation of definition

(D) Disabling the definition

isAlive

CombiLimits

Relation Changes

Notification Scenarios on Aggregated Values

Monitoring suspension

Universal Logging System

User Tools

Site Tools

Sidebar

Table of Contents

Notifications

Variations of Notifications

Notification Parameters for Limits

General Message Body

Notification Scenarios

group auto limits, differ, every value

auto limits (domain), greater equal, 12h

manual limits, substring + collect, regular expression + every value

group based limits, numeric value, 24h, all priority levels with reset by "info"

(A) Propagation of definition

(D) Disabling the definition

isAlive

CombiLimits

Relation Changes

Notification Scenarios on Aggregated Values

Monitoring suspension

Page Tools
